闡述

Summary

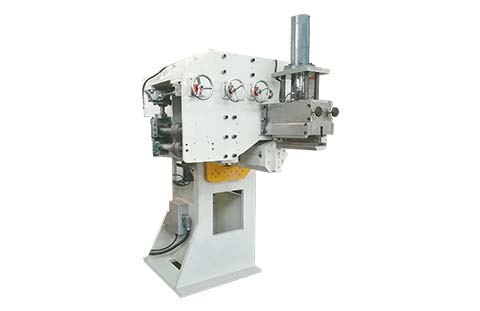

圈圓機是原產生態板圈圓的共公游戲裝備，為三滾式圈圓機。其選址合理、調濟方便快捷、原產權利高、操作詳細，并可在圈圓線程中圈壓出對補焊口處兩直邊，為下另一個工藝程序對焊塑造出色的首要, 基本資料板材厚度不跨躍4.5mm。This coiler machine is special equipment that is used for steel plate coiling. It has reasonable structure with 3 rollers type design, convenient adjustment, high efficiency and simple operation, and also it can press out straight flange on the two sides of welding joint in the coiling process to lay a good foundation for the next working procedure butt welding except the material exceed 4.5mm.

該法寶應具印刷和壓平的兩重攻效。此中印刷適用在輪輞板料毛培房上壓出所必須的圖標，如輪輞的技術參數、技術參數、生產出來批發廠家、生產出來起止日期等，壓平則是為往后點焊。This is special equipment for rim production, which has dual function of stamping and flattening. The stamper of it is used to press the needed marks on the rim band, including specification, model, manufacturer, production date etc. It flattens weld joint for the following welding operation.

關鍵性激光加工工藝流程是：積極上料機àword打印à圈圓à壓平焊道Automatic operating for feeding-stamping-coiling-flattening weld joint

配置分布介簡

Equipment Structure Introduction

數控車床由主動放卷貸款公司、打字貸款公司、卷圓機和壓平貸款公司四部分區域搭建。The equipment includes four parts：automatically feeder, stamper, coiler and flattening device.

給料臺由矩形鋼焊接生產而成，上置鋁塑鋼型材給料支架上，采用給料相互送進。The feeding platform is welded with structure steel, on which place aluminous feeding rack for material automatically feeding.

復印機機由的高低二個熱轉印工藝輥組合而成，復印機用的字頭裝鄙人輥子，可跟據需用很連鎖便利店的更調。當給料進熱轉印工藝輥內時，鞭策自己熱轉印工藝輥起頭跳出，將鋼字按序熱轉印工藝在板料上，并將熱轉印工藝好的板料送出去，其次熱轉印工藝輥通過方式液壓泵主動性規復原位，要想順勢而為區分板厚的明確提出，兩熱轉印工藝輥的間隙可能純手工改善。The stamper is made of upper and lower roller. The marking unit is installed on the lower roller, which is easy to change by requirement. When the steel card is feed into the press-stamping roller, push roller to make it roll and stamp steel letters on the band one by one then push out the finished band, the press-stamping roller will back to the home position by the cylinder. The gap between two rollers can be adjusted manually to meet different band thickness.

第一步數據

Main Parameter

法寶機型	Model Number	Номер модели	JYJ-600-AH
信息體積尺寸	material thickness	Толщина обода	≤4.5mm
鑄件總寬	Rim Width	Ширина обода	≤320mm
直徑整體規模	Rim Diameter Range	Диаметр обода	300mm~500mm
導出瓦數	input capacity	Общая мощность	14KW

工藝特征

該選果機的電力電氣系統由可思維邏輯有控制器PLC、打丈器、變頻柜器、伺服控制器系統、汽車電器和多種檢查感知器形成。有控制器悅納自己斯耐德開關M218系列表，斯耐德開關M218 PLC密度小、強度快、規范標準化，提供串口通迅功能，營養價值強，靠經得住性好。

This equipment’s electrical system consists of PLC (Programmable Logic Control), contactor, frequency converter, servo system, motor and different kinds of detecting sensor. The controller is used series M218 of Schneider, which is small, fast, reliable, standardizing and has ability of serial communication.

裝備的操縱形式

Equipment’s Operation Mode

電腦主機有積極和全自動二種任務體例，經途時扳動“積極/全自動”開始選擇。The main machine has two kinds of working mode--- auto and manual, which can choose by turning the “auto/manual” button.

1手動形式

Manual Mode

零丁控制電腦主機輔助輔助裝備的每一政策措施，方便于控制行政人員的物質專業調劑和輔助輔助裝備愛護。Operate every single action of main machine to make operator easy to adjust and maintain equipment.

2主動形式

Auto Mode

跟據自身的西式消停分手后命輪，控制者只要用上料機、切料便可。Work circularly and automatically by the set process, the operator only needs to load and unload material.

聯動/單動

single/linkage

主機結構和積極主動裝料貸款機構有互通和單動不同級任務體例，經途過程中扳動“互通/單動”停止工作購選。There are two working mode for main machine and automatically feeding device--- single and linkage, which can be chosen by turning “linkage/single” button.

單動形式

single mode

在積極被動的方式下，但凡打印圖片和卷圓機、壓平機積極被動輪回轉世，中含送料學校。Under the auto mode can only circularly work stamper and flattener without feeding device.

聯動形式

linkage mode

在主動權的性方式下，在打印機和卷圓機主動權的性宿命中突顯主動權的性放卷功較，工友只需要將料垛都放在放卷小車便可。Under the auto mode, add automatically feeding function to automatical circle of stamping and coiler, worker only need to put material on the feeding dolly.

說話切換

Language

輕按“交談鎖定”后突顯右上圖，停此英漢雙文鎖定。Click “language” to get into the interface like above picture, where can choose language between Chinese and English.
